Manufactured By :
EMS Electro Medical Systems, Switzerland
Available Options :
Invalid Quantity
This product is not available in stock.

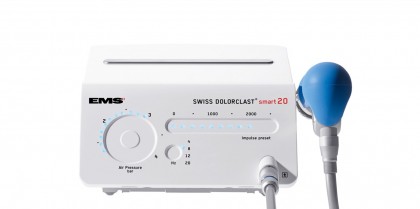

SWISS DOLORCLAST® SMART 20: Treat musculoskeletal pathologies quickly and effectively with the Radial ESWT solution.
Effective
Clinically proven energy output:
Easy
Quick-setting, fast-cleaning, no frills
Economic
Fast Return on Investment for your practice
Technical Data
Model | SWISS DOLORCLAST® SMART 20 |
Manufacturer | EMS Electro Medical Systems SA |
Product reference | FT-226 |
Technology/ies | Radial ESWT pneumatic with external compressor |
Clinical Studies | 26 Randomized Controlled Trials - More than 125 Publications |
Controls | Touch'n Go interface with leds |
Frequency range | 4 / 8 / 12 / 20 Hz |
Air pressure range | 1.5 - 4 bar |
Impulse range | 500 – 2500 |
Energy output | Positive Energy Density EVO BLUE 15mm: Up to 0.18mJ/mm2 | 15mm focus: Up to 0.28mJ/mm2 Power+ 15mm: Up to 0.4 mJ/mm2 | 15mm focus: Up to 0.55 mJ/mm² |
Cavitation | Increases with frequency, down to 4 cm |
Product features | > User friendly Interface and sleek design > Plug and Play > Automatic restart of the treatment when the number of impulses reaches 0 |
Configuration | > 1 Swiss DolorClast® Evo Blue handpiece > 1 Cart with Gel Bottle & Cable Holder > 1 Oil Compressor |
Option | > Swiss DolorClast® Power+ Handpiece > Transportation Case > Oil free compressor |
Dimensions in [mm] | H. 108 x W. 280 x D. 300 |
Weight in [kg] | Approx. 2.9 kg (unit only) |
Classification | 93/42 EEC: Class II b EN 60601-1: Class I |
Power supply | 100-240 V AC 50-60 Hz |
Operating conditions | +10°C to +40°C and 30% to 75% relative humidity |
Storage and transport conditions | -10°C to +40°C and 10% to 95% relative humidity. 500 hPa to 1060 hPa air pressure (unit only) |
Air supply | 5 - 6 bar (5000 - 6000 hPa) 30 Nl/min at 4 bar |
Fuses | Ø 5 x 20 mm, 250 V AC, time lag, low breaking capacity(Phase and Neutral) T 2.5 A L |
If you are interested to buy products in the United States of America, please contact: | Electro Medical Systems Corporation, 11886 Greenville Ave Suite 120 Dallas, TX 75243 Toll-Free 1 800 367 0367 |
