MOTOmed Muvi

Manufactured By :

Reck MOTOmed, Germany

Available Options :

Qty :

This product is not available in stock.

Enquire Now

MOTOmed muvi

Simultaneous movement therapy

The unique MOTOmed muvi feature enables leg and arm training at the same time. For the first time, it is possible to train both areas simultaneously. The passive or active training, the movement speed and the resistance level for legs and arms can be adjusted separately for simultaneous movement. Consequently, the legs can be engaged in passive training while the user moves actively with the arms at the same time. Depending on the indication, simultaneous movement can improve the therapy effect and reduces the therapy time.

With the high-quality Health-Care product MOTOmed muvi RECK Medizintechnik reacts to the current requests of modern future-orientated investment concepts from medical agencies.:

All used materials can be disinfected
Height, vertical and radial adjustment can be set without tools
Different handles, which close with a safety bracket fast and safely and which can be changed without tools

Usability – simple operation

The colour touch screen is conceived in detail for medical use:

Glare protection Anti-Glare-Effect
Low perspective dependence (best legibility)
Resistive touch (light contact doesn`t activate an unwanted action)
The screen is suitable for a wipe disinfection
Well readable: the presentation on the screen is large and clearly arranged
Tactile, enhanced buttons

Basic Configuration

leg and arm/upper body trainer, the possibility of simultaneous training
color/touch display (12.1")
plastic coated safety foot shells, handlebar and arm/upper body trainer
handlebar and arm/upper body trainer can be rotated and adjusted vertically and horizontally
MOTOmed SmoothDriveSystem
speed regulation from 1 to 60 rpm (passive)
preset the therapy duration from 0 to 120 minutes
soft start and stop
two-stage pedal radius adjustment (7.0 and 12.5 cm/2.8 and 4.9 in)
mobile with big castors (15.0 cm/5.9 in diameter)
whisper quiet, gentle, and harmonious cycling movement
all-metal design, top quality, and stability with telescopic foot
Therapy and motivation programs
Training programs & Games
Slideshow via USB (delivered without USB stick)
color: black/white (RAL 9010)

Functions

Foot insertion aid
In order to easily insert and fasten the feet into the safety foot shells, you can position the pedals into the desired position by pushing the respective button on the control panel. This function also facilitates the removal of the feet from the foot shells at the end of each training session.
Movement Protector
In case of spasticity, muscle cramping or any sort of movement blockage, the MOTOmed MovementProtector will stop the pedal movement. Special characteristic about this safety feature: The MovementProtector does not remain in a constant mode but adjusts to the changing muscle tension. Therefore, it is always optimally sensitive.
Servo Cycling Similar to a power steered vehicle, the MOTOmed feature ServoCycling supports the user during active training. This function enables, even people with minimal muscle strength, to train actively without overstraining. The feature supports the maintenance and improvement of residual muscle strength.
SymmetryTraining
The MOTOmed function SymmetryTraining is beneficial when aiming to targetedly train the weaker side of the body. Depending on the model, the depiction of this function may vary. In MOTOmed viva2 models, a two-scale diagram shows the user how much strength they exert with the left and the right body half. The MOTOmed muvi depicts this function with an animated figure. This way the user can targetly train the weaker side. SymmetryTraining also counteracts overstraining of healthy limbs.
Training analysis
The training data analysis will motivate you to engage in a regular MOTOmed movement. You can view all important training values (e.g. symmetry, performance, speed, distance, and time) during the entire training session on the MOTOmed color display. With the completion of the training, the overview of all available 36 values is displayed. The MOTOmed viva2 stores the ''previous training '' along with other training data that is compiled in an overall analysis. These values can be retrieved at any time.

Technical Data

Dimensions (l × w × h cm) 95-108 x 60 x 124-135
Weight 51 kg
All-Metal construction
Classification Protection Class II/Type BF,
Classification according to MPG IIA
Maximum permissible user weight 135 kg/297.6 lbs
Screen Size 12,1"/30,48 cm

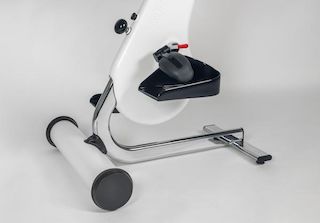

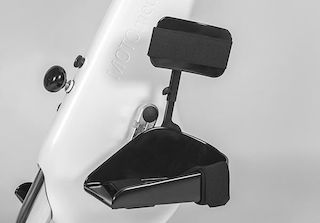

item no. 303.000 Leg guides with plastic-coated calf shells and disinfectable flat straps For secure support and guidance of the legs Spring-loaded calf shells nestle elastically to the body Comfortable fixation by means of loop straps with Velcro fastener Removable calf shells, fold-down guide rail (lower part) articulated and height-adjustable recommended for use in facilities	item no. 265.004 “QuickFix” quick-fastener foot holder (pair) For quick fixing and loosening of the feet. Padding is easy to clean and disinfect.	item no. 562.000 Hand fixation with wrist cuff, size L (piece) simple and quick fixation of weak or paralyzed hands to the arm trainer, the handlebar and different types of handles. recommended for users with limited grasp function.

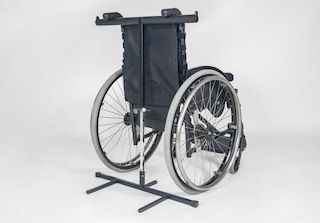

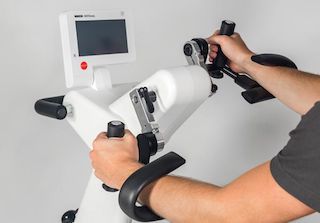

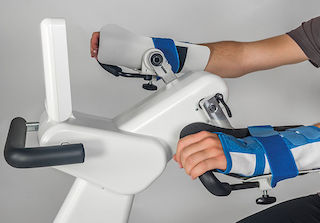

item no. 556.206 Forearm shells with arm cuffs and quick release system (pair) firmly fasten and guide the arms, suitable for strong paralysis	item no. 555.200 Tetra handles with quick release system simple and independent insertion of the arms	item no. 100.000 Wheelchair stabilizer recommended for strong spasms supports the wheelchair: no tilting or sliding backwards for all common wheelchair types with padded support bar for the wheelchair handles width of handle support: 580 mm

Warranty: 12 Months from the date of Invoice

Delivery: 4-6 weeks from the order confirmation.

For more information:

https://www.motomed.com/en/products/motomed-muvi/
