MOTOmed gracile12
Effective movement therapy for children with special needs

The pediatric model from RECK medical devices is the only motorized movement therapy device that fulfills the special needs of children. The MOTOmed has a narrow pedal distance of 12 cm enabling children and small adults to train in a physiological joint position. This may avoid an unnatural straining of hip and knee joints. The height adjustable foot shells can be adapted to the length of the legs for an ideal sitting position. The MOTOmed gracile12 grows along with your child.

The MOTOmed gracile12 is equipped with several safety features, such as SpasmControl and MovementProtector. This way, a safe daily movement therapy becomes possible even with physical limitations.

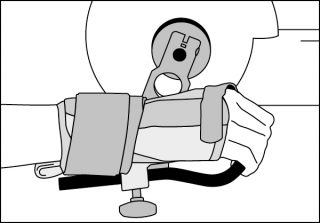

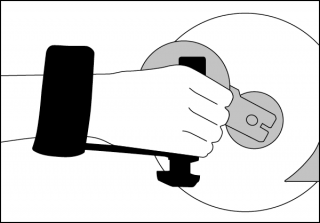

Besides the leg trainer, the MOTOmed gracile12 is available as a combination device for leg and arm-/upper body training. The MOTOmed arm-/upper body trainer can be swiveled in and swiveled out of the training area. The arm-/upper body training specifically strengthens the arm-, upper body-, shoulder and the auxiliary respiratory musculature.

MOTOmax - more fun during training

During active training, children can make the game character MOTOmax jump and collect points. If either legs or arms are engaged equally, the MOTOmax ''jumps for joy'' and rewards children with a smile.

Usability – simple operation

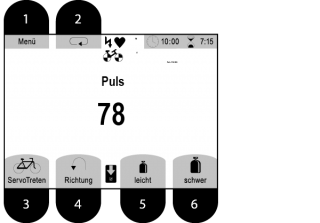

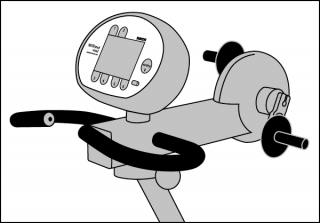

Users navigate intuitively the colour display (display diagonal 5,7 inch) at the MOTOmed, because each next possible operating step is lightened in “green”. Tactile (small increased), large keys make the operation more easily. The large representation of the training information ensures a well legibility.

Basic Configuration

• Leg trainer (Optional: arm/upper body trainer)

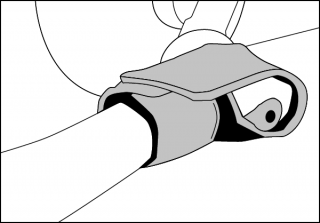

• Pediatric safety foot shells with pediatric leg guides
• Small distance of 12 cm between the inner rims of the foot shells
• Two-stage pedal radius adjustment (3.5 cm / 7.0 cm)
• Height adjustable pedal axle
• Handlebar adjustable in height and inclination
• Mobile with big castors (13cm diameter)
• All-metal construction, premium and stable

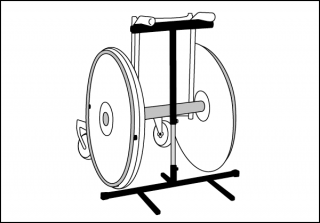

• additional stability by telescopic front stand
• MOTOmed SmoothDriveSystem with a gentle startup and rundown
• MovementProtector & SpasmControl
• Speed regulation from 0 to 60 rpm (passive)
• Regulation of motor power from 1 to 10
• Preset the therapy duration from 0 to 120 minutes
• automatic device self-test
• user-friendly operating panel with a color coded system and big, easy-feel buttons
• Language selection between 27 different languages

Functions

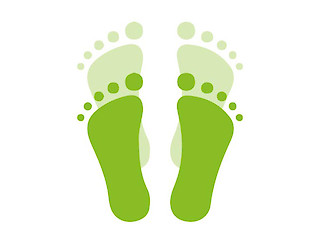

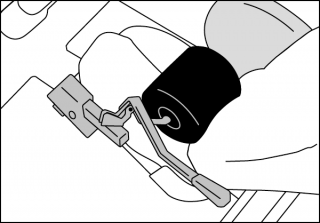

Foot insertion aid
In order to easily insert and fasten the feet into the safety foot shells you can position the pedals into the desired position by pushing the respective button on the control panel. This function also facilitates the removal of the feet from the foot shells at the end of each training session.

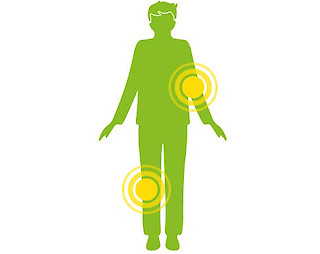

Movement Protector
In case of spasticity, muscle cramping or any sort of movement blockage, the MOTOmed MovementProtector will stop the pedal movement. Special characteristic about this safety feature: The MovementProtector does not remain in a constant mode but adjusts to the changing muscle tension. Therefore, it is always optimally sensitive.
Spasm Control The SpasmControl with the automatic change in cycling direction helps loosening spasms according to the following therapeutic principle: A bending spasm is relieved by stretching, while a stretching spasm is eased by bending. The motor stops the pedal movement. Legs and arms are relieved and the direction of rotation is switched after a brief resting period. This process is repeated until the cramping is eased.
Servo Cycling Similar to a power steered vehicle, the MOTOmed feature ServoCycling supports the user during active training. This function enables, even people with minimal muscle strength, to train actively without overstraining. The feature supports the maintenance and improvement of residual muscle strength.
SymmetryTraining
The MOTOmed function SymmetryTraining is beneficial when aiming to targetedly train the weaker side of the body. Depending on the model, the depiction of this function may vary. In MOTOmed viva2 models, a two-scale diagram shows the user how much strength they exert with the left and the right body half. The MOTOmed muvi depicts this function with an animated figure. This way the user can targetly train the weaker side. SymmetryTraining also counteracts overstraining of healthy limbs.

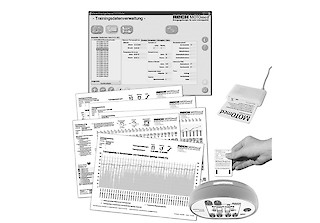

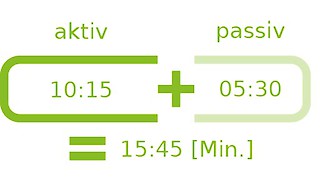

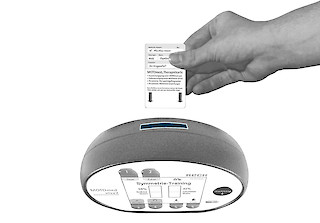

Training analysis
The training data analysis will motivate you to engage in a regular MOTOmed movement. You can view all important training values (e.g. symmetry, performance, speed, distance and time) during the entire training session on the MOTOmed color display. With the completion of the training, the overview of all available 36 values is displayed. The MOTOmed viva2 stores the ''previous training '' along with other training data that is compiled in an overall analysis. These values can be retrieved any time.
